MAX phases, known for their unique layered structure combining metallic and ceramic properties, face synthesis challenges with already developed direct synthesis and indirect synthesis methods like SPS, CVD, and molten salt methods. Many thermodynamically stable and unstable MAX phases remain unexplored due to the difficulty in controlling reaction conditions and the formation of unwanted phases. The Liquid Metal Layer Replacement (LMLR) method offers a promising alternative by selectively replacing A-layer atoms with molten metal baths, thereby enabling the synthesis of novel MAX phases. This method not only addresses the limitations of conventional synthesis techniques but also provides greater control over composition and structure, facilitating the discovery of new MAX phases.
実験 / Experimental
Currently, most non-equilibrium methods for synthesizing MAX phases are focused on thin films and powders. Since LMLR takes advantage of diffusion between metals, we chose bulk Ti3SiC2 precursor to emphasize the potential of this method. The bulk Ti3SiC2 was synthesized using powder metallurgy. Initially, titanium powder (Ti, purity 99.5%), carbon powder (C, purity 99.9%), and silicon powder (Si, purity 99.9%) were weighed in a molar ratio of 3Ti:2C:1Si. To ensure uniform mixing of the raw materials, ball milling was performed at 300 rpm for 20 hours. During the ball milling process, the ductile cast iron tank was evacuated and filled with argon at 0.5 atm to prevent oxidation of the powders. The milled powder mixture was then placed in a graphite mold and sintered using induction heating and spark plasma sintering (SPS). The sintering was conducted at 1400 ℃ in an argon atmosphere at one atmosphere of pressure, with an axial pressure of 60 MPa maintained throughout. The heating time for sintering was 30 minutes, with a dwell time of 60 minutes.
The synthesized Ti3SiC2 sample was then cut into 30 × 15 × 1 mm blocks and polished. The samples were suspended above a crucible using a molybdenum wire (φ1.5 mm), and the crucible was placed in an induction furnace. The furnace was heated to 1100 ℃ to melt the copper in the crucible. Once the temperature stabilized, the Ti3SiC2 precursor was gradually immersed in the molten Cu for 5–30 minutes for the LMLR reaction. After the reaction, the sample was cooled and extracted for further structural and compositional analyses.
The phases present in the sample were identified using an X-ray diffractometer (XRD, Rigaku Ultima IV) equipped with a Cu tube. The microstructure and composition were investigated using a scanning electron microscope (SEM, Carl Zeiss Ultra 55) equipped with an energy-dispersive X-ray spectrometer (EDX, Bruker X-flash). High-resolution atomic-level structural analysis was also performed using a high-angle annular dark-field (HAADF) imaging and energy-dispersive spectroscopy (EDS) equipped scanning transmission electron microscope. The TEM lamellas were prepared by Focused ion-beam (FIB).
結果と考察 / Results and Discussion
In this study, we introduced a novel Liquid Metal Layer Replacement (LMLR) method for synthesizing the MAX phase Ti3(Si1-xCux)C2 and its delivertive material, layered Cu-TiCx composites. By immersing bulk Ti3SiC2 precursor into molten copper at 1100 ℃, we demonstrated that copper atoms could effectively replace silicon atoms in the A-layer through a diffusion process driven by mixing enthalpy. Our results show that the Ti3(Si1-xCuX)C2 MAX phase initially forms at the reaction front, characterized by a directional, jagged substitution region, as shown in Fig.1. As the Si concentration further decreases, this MAX phase becomes thermodynamically unstable in the 1100 ℃ Cu bath and decomposes into a nanolaminate TiCx-Cu composite. Similarly, immersing Ti3AlC2 in molten Ag at 1000 ℃ causes Al atoms to dissolve and be replaced by Ag, forming Ti3(Al1-xAgx)C2. When Al continues to dissolve, the new Ti3(Al1-xAgx)C2 MAX phase decomposes into a nanolaminated TiCx-Ag composite material.
図・表・数式 / Figures, Tables and Equations

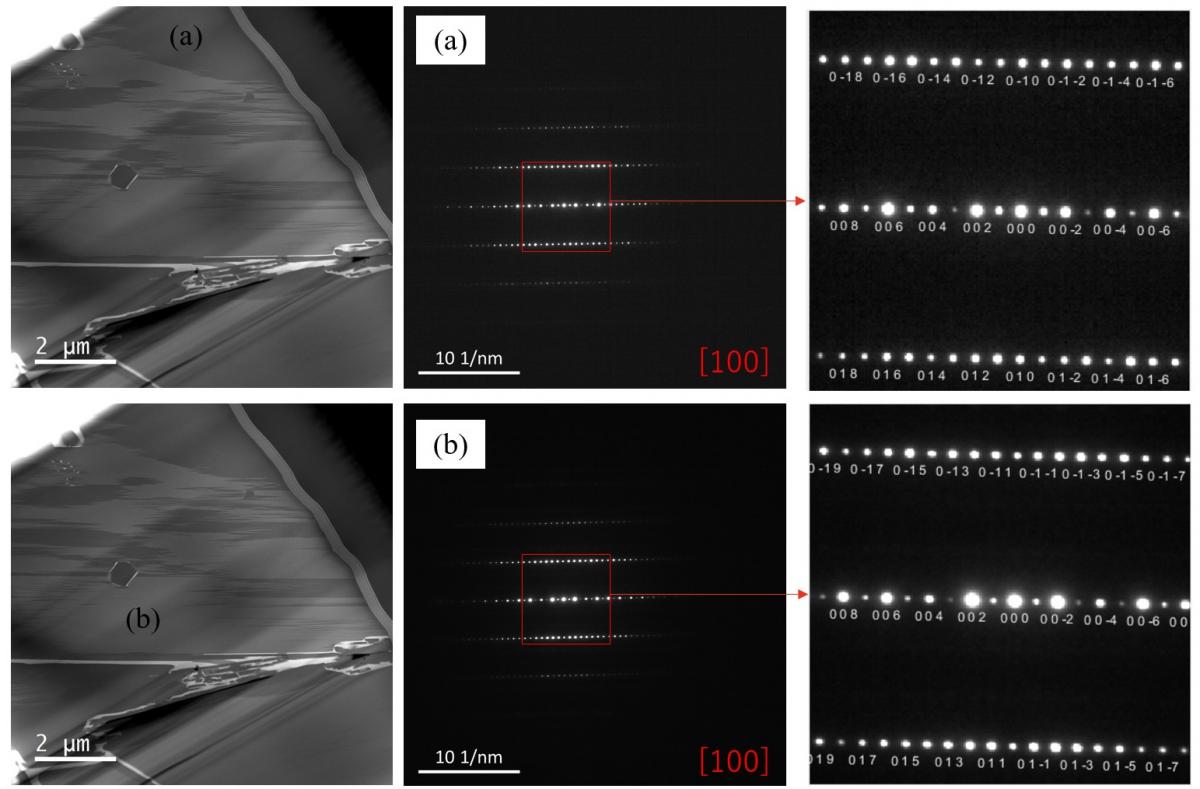

Fig.1:(a) The diffraction pattern of the unreacted Ti3SiC2 precursor (b) The diffraction pattern of Ti3(Si1-xCux)C2 after the repalcement
