課題データ / Project Data

課題番号 / Project Issue Number

24UT0288

利用課題名 / Title

Fatigue of Cu/Nb Metallic Layered Structures

利用した実施機関 / Support Institute

東京大学 / Tokyo Univ.

機関外・機関内の利用 / External or Internal Use

内部利用(ARIM事業参画者以外)/Internal Use (by non ARIM members)

技術領域 / Technology Area

【横断技術領域 / Cross-Technology Area】(主 / Main)計測・分析/Advanced Characterization(副 / Sub)-

【重要技術領域 / Important Technology Area】(主 / Main)その他/Others(副 / Sub)-

キーワード / Keywords

Cu/Fe metallic layers,イオンミリング/ Ion milling


利用者と利用形態 / User and Support Type

利用者名(課題申請者)/ User Name (Project Applicant)

Hu Haoyu

所属名 / Affiliation

東京大学工学系研究科マテリアル工学専攻

共同利用者氏名 / Names of Collaborators in Other Institutes Than Hub and Spoke Institutes

安田 光希,飯塚 大貴

ARIM実施機関支援担当者 / Names of Collaborators in The Hub and Spoke Institutes
利用形態 / Support Type

(主 / Main)機器利用/Equipment Utilization(副 / Sub)-


利用した主な設備 / Equipment Used in This Project

UT-153:クロスセクションポリッシャー(CP)


報告書データ / Report

概要(目的・用途・実施内容)/ Abstract (Aim, Use Applications and Contents)

The samples were cross-section polished for EBSD measurement.

実験 / Experimental

The samples were cross-section polished using CP(SM-09010 and SM-09020).

結果と考察 / Results and Discussion

EBSD measurement was conducted following CP. The crystallographic information was obtained for the metallic layer structures(Fig.1). CP proved to be an effective preparation method for EBSD, as it provided a high-quality surface with minimal deformation, allowing for accurate indexing of the diffraction patterns. The reduction of surface artifacts and residual stress enhanced the clarity of the acquired data, improving the reliability of grain orientation and phase identification. Compared to conventional mechanical polishing, CP resulted in better Kikuchi pattern quality, which is crucial for precise crystallographic analysis. The superior surface finish obtained through CP contributed to higher indexing rates, making it a preferred method for EBSD measurements.

図・表・数式 / Figures, Tables and Equations

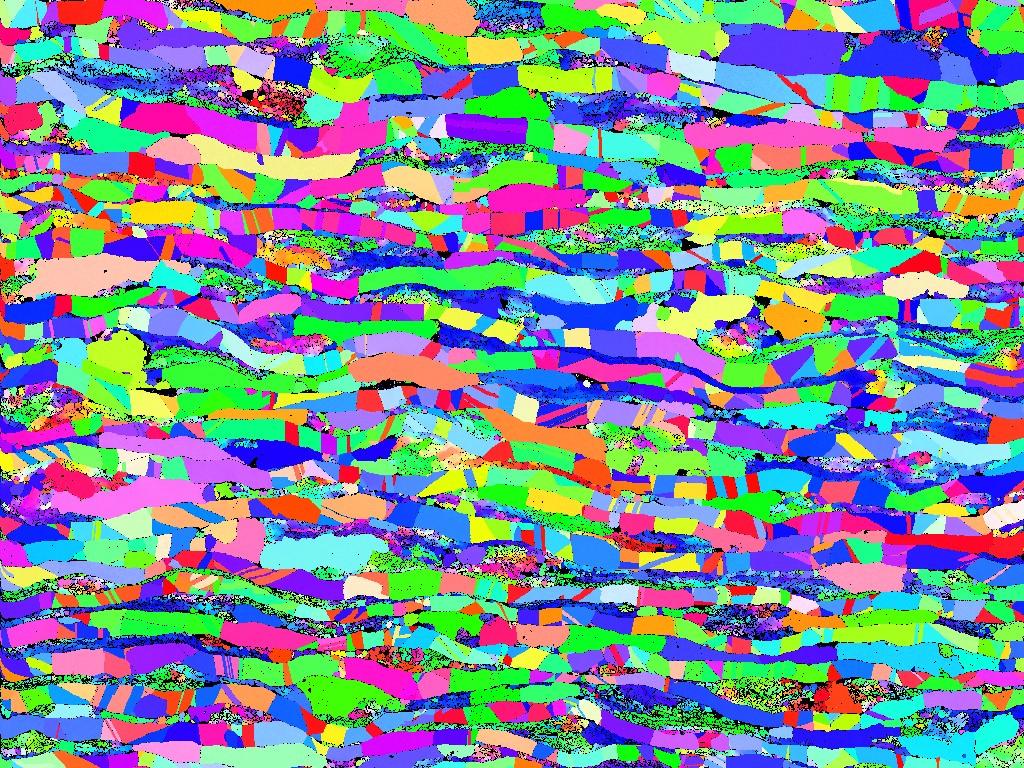

Fig.1 The IPF maps of Cu/Fe metallic layers


その他・特記事項(参考文献・謝辞等) / Remarks(References and Acknowledgements)


成果発表・成果利用 / Publication and Patents

論文・プロシーディング(DOIのあるもの) / DOI (Publication and Proceedings)
口頭発表、ポスター発表および、その他の論文 / Oral Presentations etc.
特許 / Patents

特許出願件数 / Number of Patent Applications:0件
特許登録件数 / Number of Registered Patents:0件
