課題データ / Project Data

課題番号 / Project Issue Number

24UT0296

利用課題名 / Title

C3N4ナノシート光触媒の構造の観察

利用した実施機関 / Support Institute

東京大学 / Tokyo Univ.

機関外・機関内の利用 / External or Internal Use

外部利用/External Use

技術領域 / Technology Area

【横断技術領域 / Cross-Technology Area】(主 / Main)計測・分析/Advanced Characterization(副 / Sub)-

【重要技術領域 / Important Technology Area】(主 / Main)革新的なエネルギー変換を可能とするマテリアル/Materials enabling innovative energy conversion(副 / Sub)次世代ナノスケールマテリアル/Next-generation nanoscale materials

キーワード / Keywords

photocatalysis,電子顕微鏡/ Electronic microscope


利用者と利用形態 / User and Support Type

利用者名(課題申請者)/ User Name (Project Applicant)

Wang Qian

所属名 / Affiliation

名古屋大学大学院工学研究科

共同利用者氏名 / Names of Collaborators in Other Institutes Than Hub and Spoke Institutes

中林 麻美子

ARIM実施機関支援担当者 / Names of Collaborators in The Hub and Spoke Institutes

寺西亮佑

利用形態 / Support Type

(主 / Main)機器利用/Equipment Utilization(副 / Sub)-


利用した主な設備 / Equipment Used in This Project

UT-002:軽元素対応型超高分解能走査透過型電子顕微鏡(Cs-STEM)
UT-006:ハイスループット電子顕微鏡


報告書データ / Report

概要(目的・用途・実施内容)/ Abstract (Aim, Use Applications and Contents)

Checking Co dispersion by STEM-EDS
Confirming thickness of each samples.

実験 / Experimental

High Throughput Electron Microscope UT-006
Light elements visible ultra-high-resolution scanning transmission electron microscope UT-002
the thickness change of all samples and cobalt will be analyzed by these equipments

結果と考察 / Results and Discussion

The representative sheet-like morphology of g-C3N4 nanosheets was investigated. It could be observed that CN-2 exhibited a more significant laminar structure compared to BCN and CN-1. And EDX confirmed that carbon and nitrogen were uniformly distributed on these nanosheets. In addition, highly dispersed atomic Co species were clearly observed on the CN-2-rGO-CoOx substrate via high-angle annular dark-field scanning TEM (AC HAADF-STEM) images, including very small nanoclusters and partial of isolated atoms with an average size about 0.2-0.5 nm.

図・表・数式 / Figures, Tables and Equations


Fig.1



Fig.2

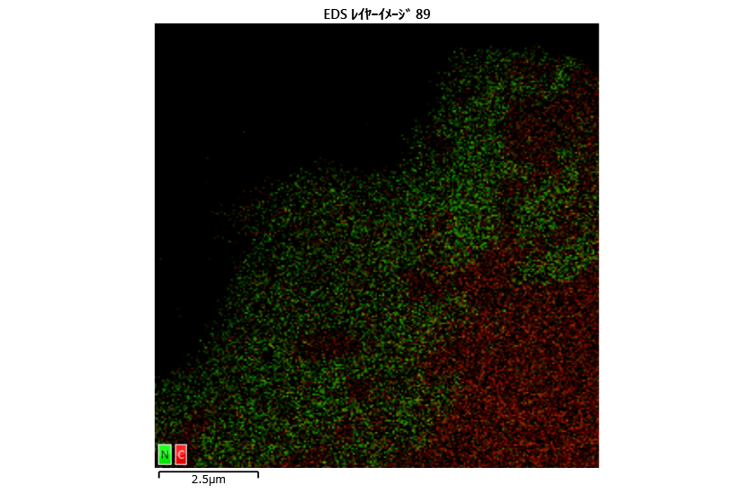

Fig.3


その他・特記事項(参考文献・謝辞等) / Remarks(References and Acknowledgements)

References:Liu, P. et al. Nat. Commun. 2024, 15, 9224.
Zhang, X. et al. Nat. Commun. 2023, 14, 7115.


成果発表・成果利用 / Publication and Patents

論文・プロシーディング(DOIのあるもの) / DOI (Publication and Proceedings)
口頭発表、ポスター発表および、その他の論文 / Oral Presentations etc.
特許 / Patents

特許出願件数 / Number of Patent Applications:0件
特許登録件数 / Number of Registered Patents:0件
